Refrigerated Cabinets 700 - Cabinets

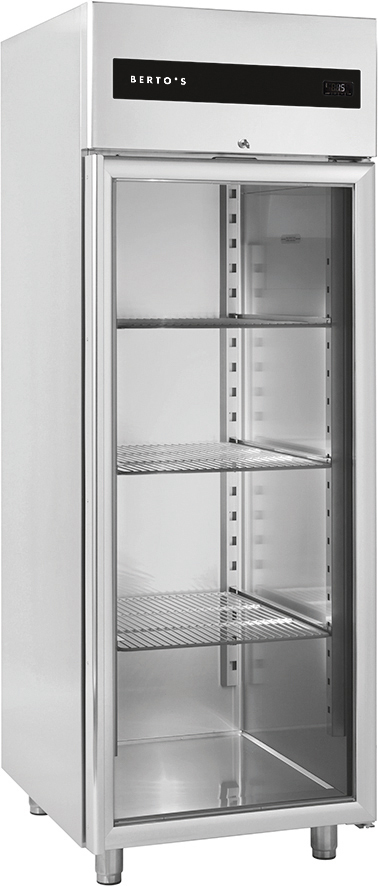

REFRIGERATED CABINET 700 -18-22°C GLASS DOOR

Model CAB700GBT
Code 06240010
  • Refrigerated cabinet equipped with a monobloc unit that is tropicalized and easily removable from the body, with forced ventilated refrigeration with R290 gas.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Tested with external working environment temperatures up to 43 °C, efficiency equivalent to energy class 4.
  • 75 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m3.
  • Temperature detection by means of a thermistor sensor (NTC probe).
  • Operation control through a digital “touch” panel.
  • Automatic defrosting by hot gas.
  • Automatic evaporation of condensate water by means of a heat exchanger in AISI 316L stainless steel.
  • Rounded internal corners for quick and easy cleaning.

Technical specifications

Technical specifications

Details
total electric kW 0.79
Electrical voltage 220-240 V / 50 Hz
Preservation
Range -18/-22 °C
Gas R290
Energy class E
Climate class 4
Electrical consumption (kWh/year) 2957
Useful net volume 465
Number of shelves 3 GN2/1
Dimensions (mm) 730x835x2095
Absorbed power (W) 530
Absorbed power (A) 4.3
Electrical power (Volt/Ph/Hz) 230/1/50 - 60Hz
Package dimensions (mm) 800x900x2300
Net weight (kg) 144
Gross weight (kg) 159
Measurements
Width 730
Depth 835
Height 2095
Weight 144
Volume 1.44
Package
Package width 800
Package depth 900
Package height 2300
Package weight 147
Package volume 1.65
