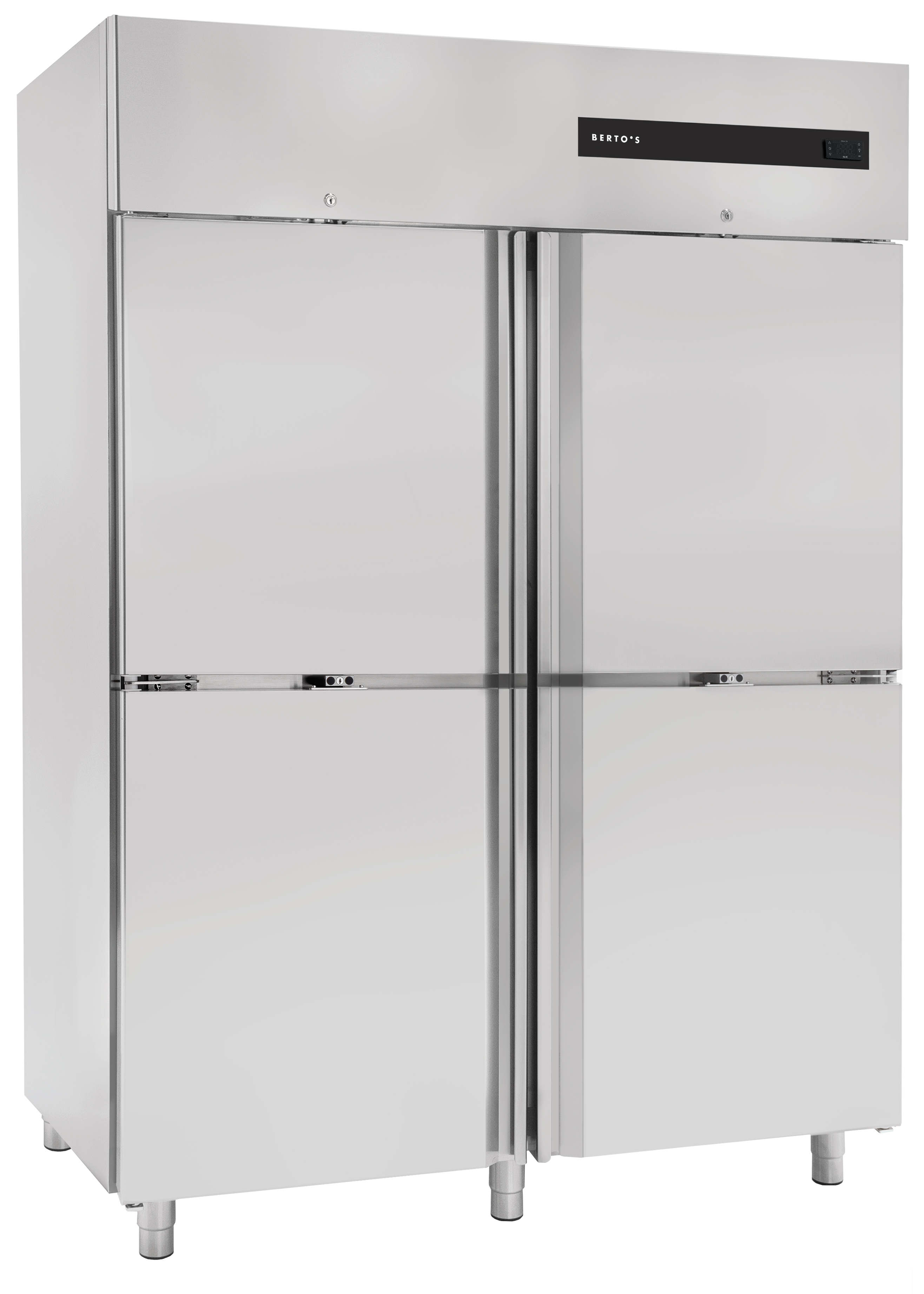

REFRIGERATED CABINET 1400 -2 +8°C - 4 DOORS
Download the image
Refrigerated Cabinets 1400 - Cabinets

REFRIGERATED CABINET 1400 -2 +8°C - 4 DOORS

Model CAB1400TN4P
Code 06220040
  • Refrigerated cabinet equipped with a monobloc unit that is tropicalized and easily removable from the body, with forced ventilated refrigeration with R290 gas.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Tested with external working environment temperatures up to 43 °C, efficiency equivalent to energy class 5.
  • 75 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m3.
  • Temperature detection by means of a thermistor sensor (NTC probe).
  • Operation control through a digital “touch” panel.
  • Automatic defrosting by hot gas.
  • Automatic evaporation of condensate water by means of a heat exchanger in AISI 316L stainless steel.
  • Rounded internal corners for quick and easy cleaning.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 0.58
Electrical voltage 220-240 V / 50 Hz
Preservation
Range -2/+8 °C
Gas R290
Energy class D
Climate class 5
Electrical consumption (kWh/year) 1095
Useful net volume 930
Number of shelves 8 GN2/1
Dimensions (mm) 1460x835x2095
Absorbed power (W) 320
Absorbed power (A) 3.5
Electrical power (Volt/Ph/Hz) 230/1/50 - 60Hz
Package dimensions (mm) 1500x900x2300
Net weight (kg) 206
Gross weight (kg) 235
Measurements
Width 1460
Depth 835
Height 2095
Weight 206
Volume 2.44
Package
Package width 1500
Package depth 900
Package height 2300
Package weight 235
Package volume 3.10

Dimensions

Dimensions
