Refrigerated Bases - 4 doors - Bases

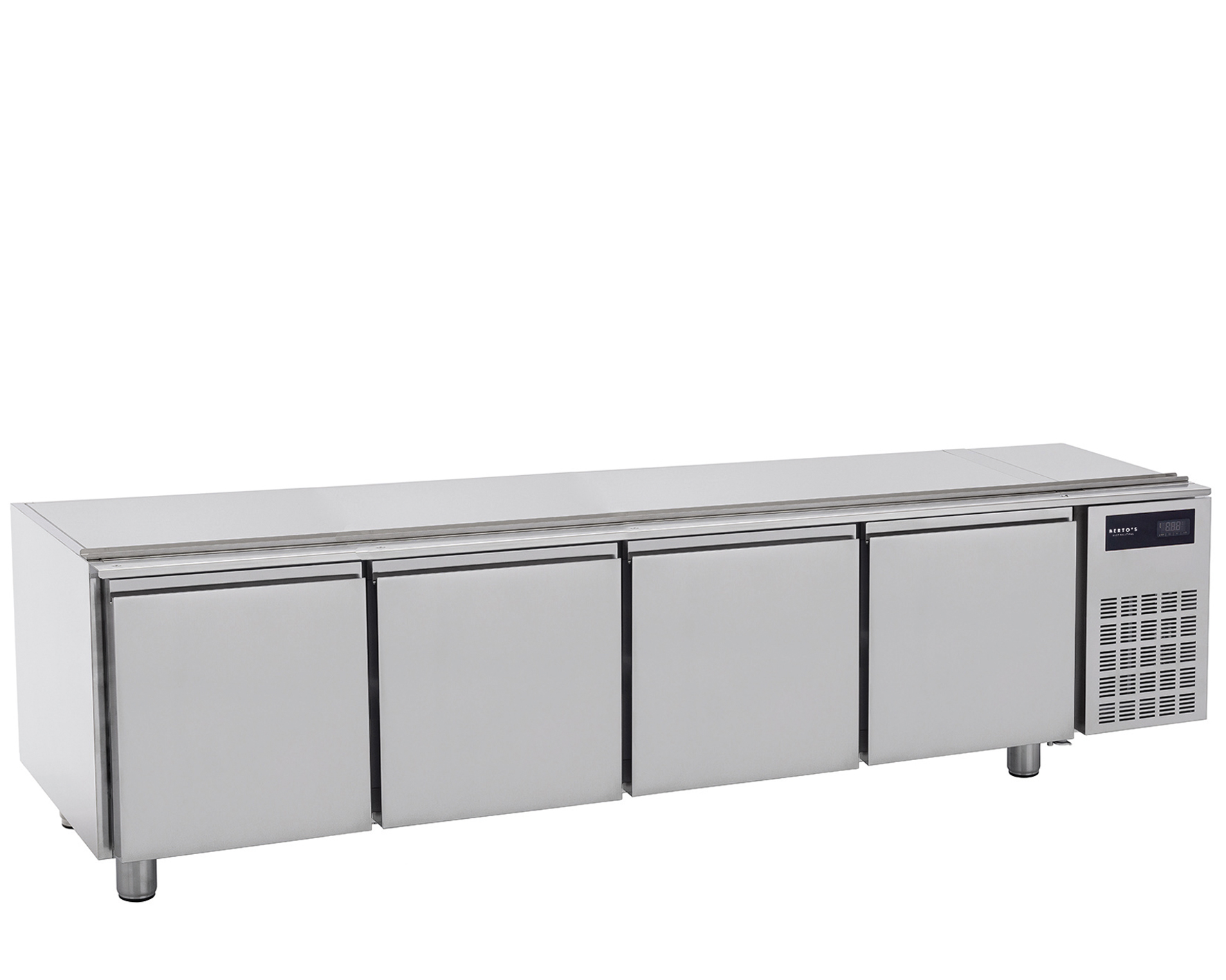

REFRIGERATED BASE 2200 - 4 DOORS

Model 9SF4P220
Code 13388100
Supporting refrigerator base for worktop cooking appliances.
Made from AISI 304 stainless steel, inside measurements 1/1 GN.
Available with doors or drawers.
Motor incorporated in the technical compartment.
The stainless steel structure has 60 mm thick insulation made by injecting HCFC free polyurethane resin. Automatic defrosting using heating elements, equipped with a device to dispose of condensation water by means of a heat exchanger in AISI 316 stainless steel.
Forced ventilated refrigeration with protected evaporators positioned between the compartments. Temperature control given by the rear panel electronic board with constant display.
The drawers are available with telescopic runners and are fully extractable. Working temperature range -2 °C /+10 °C.

Technical specifications

Technical specifications

Details
total electric kW 0.5
Electrical voltage 220-240 V / 50 Hz
Preservation
Range -2/+10 °C
Gas R290
Energy class C
Climate class 5
Electrical consumption (kWh/year) 935
Useful net volume 270
Dimensions (mm) 2200x750x610
Absorbed power (W) 350
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 2240x780x800
Net weight (kg) 148
Gross weight (kg) 175
Worktop without worktop (four doors)
Measurements
Width 2200
Depth 750
Height 610
Weight 148
Volume 0.86
Package
Package width 2240
Package depth 780
Package height 800
Package weight 175
Package volume 1.4
