4-ZONE INFRARED TOP + 1/1 ELECTRIC OVEN
Download the image
INFRARED AND INDUCTION COOKERS - S900

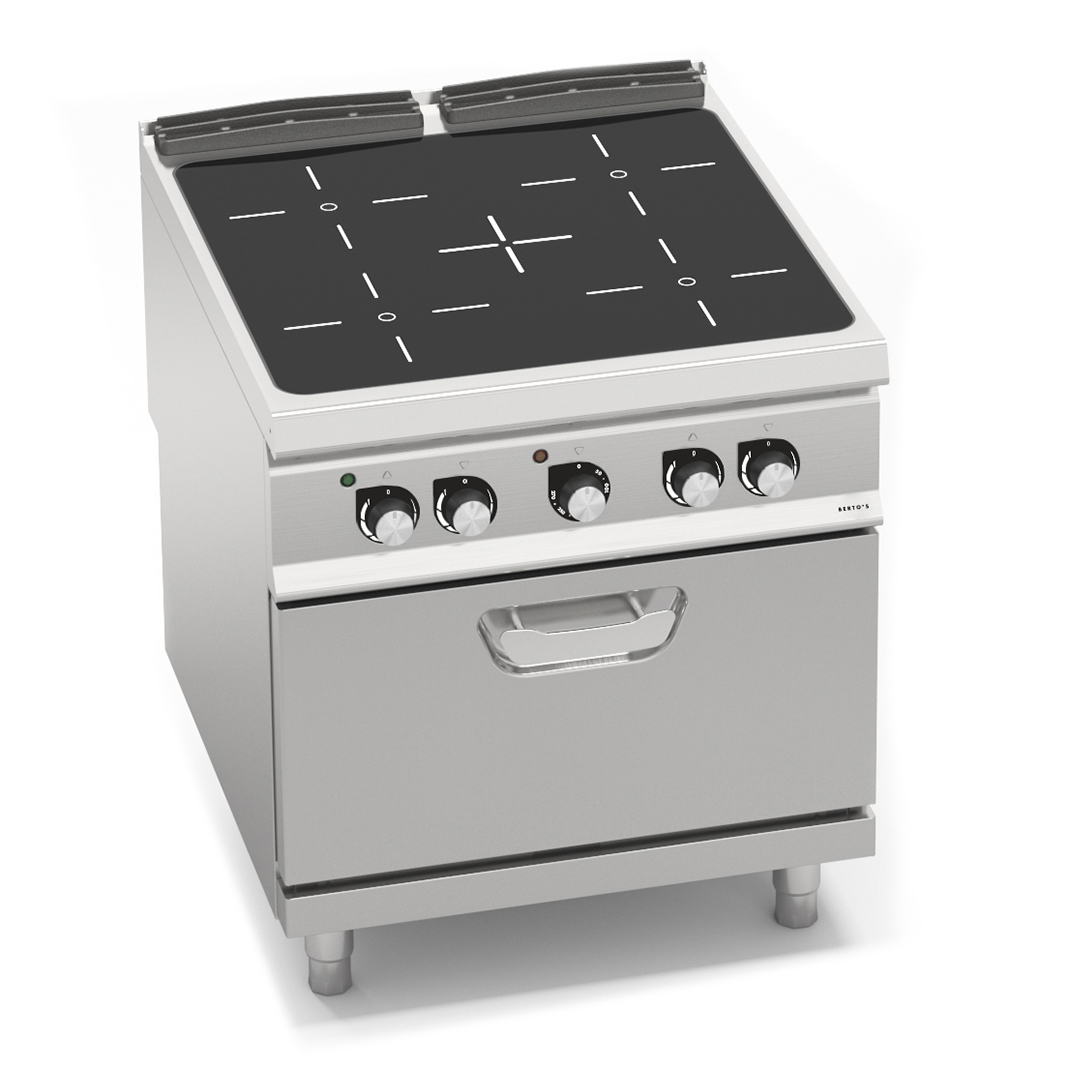

4-ZONE INFRARED TOP + 1/1 ELECTRIC OVEN

Model SE9P4P/VTR+FE2
Code 13734400
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. Pyroceram top with a thickness of 6 mm. Electrical resistances able to reach high temperatures (500°C) to heat the cooking top with irradiation. The zones are marked with proper serigraphs that allow the proper positioning of the pans. After switching off each zone, a light signals residual heat up to 60°C to safe-guard the operator. Electric convection oven with reverse rotation fan, oven chamber from AISI 430 made completely of STAINLESS STEEL with 3 levels for 1/1 GN shelves/trays. Thermostat for the correct regulation of temperature from 50° to 270°C.
Power indicator and temperature light. Pressed door and counter door made of AISI 304 STAINLESS STEEL.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Oven
Oven type E
Oven power in kW 4.68
Details
total electric kW 20.68
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 900
Height 900
Weight 125
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 144
Package volume 1.1

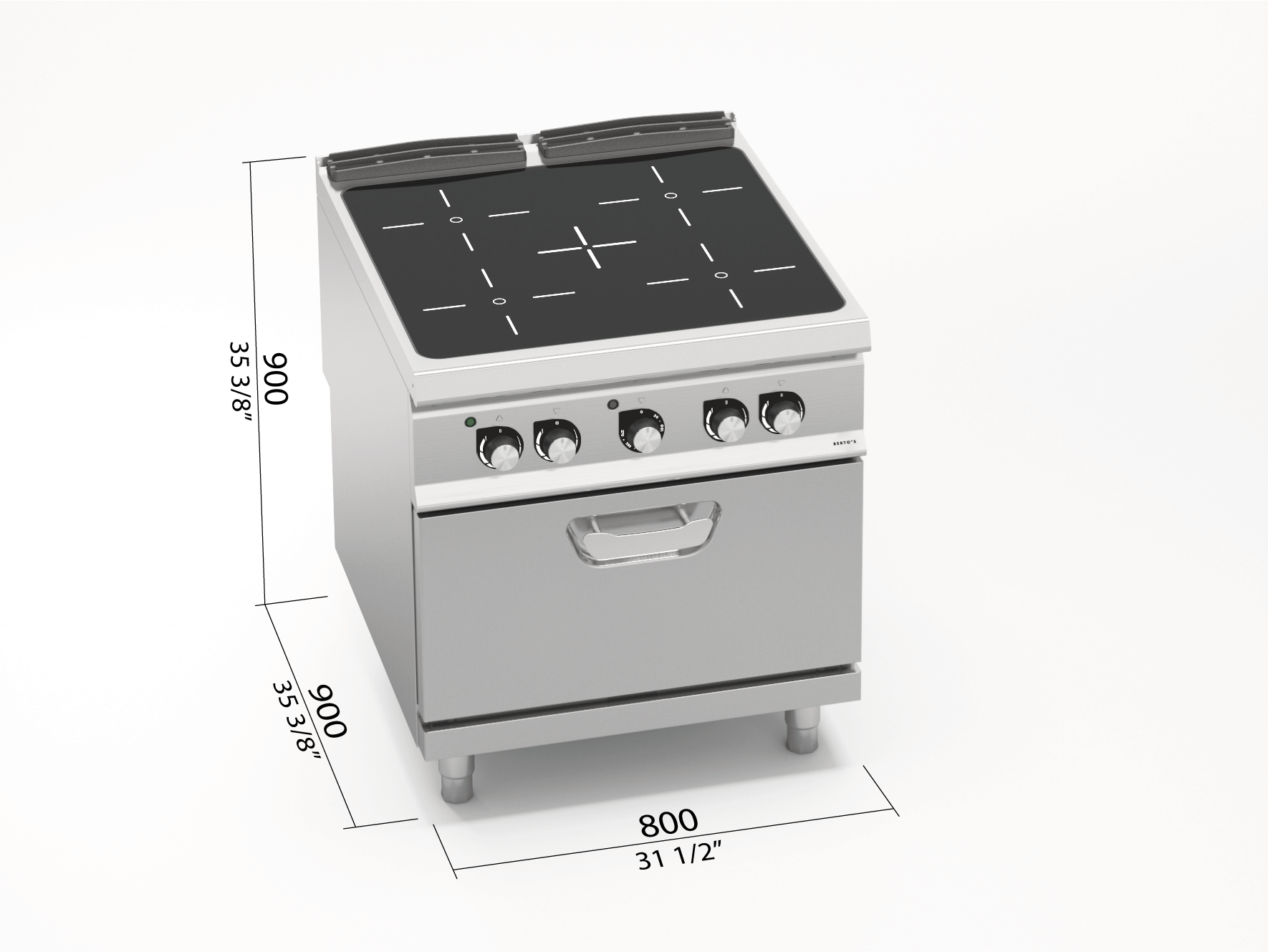

Dimensions

Dimensions
