4-ZONE INFRARED TOP
Download the image
INFRARED AND INDUCTION COOKERS - MACROS 700

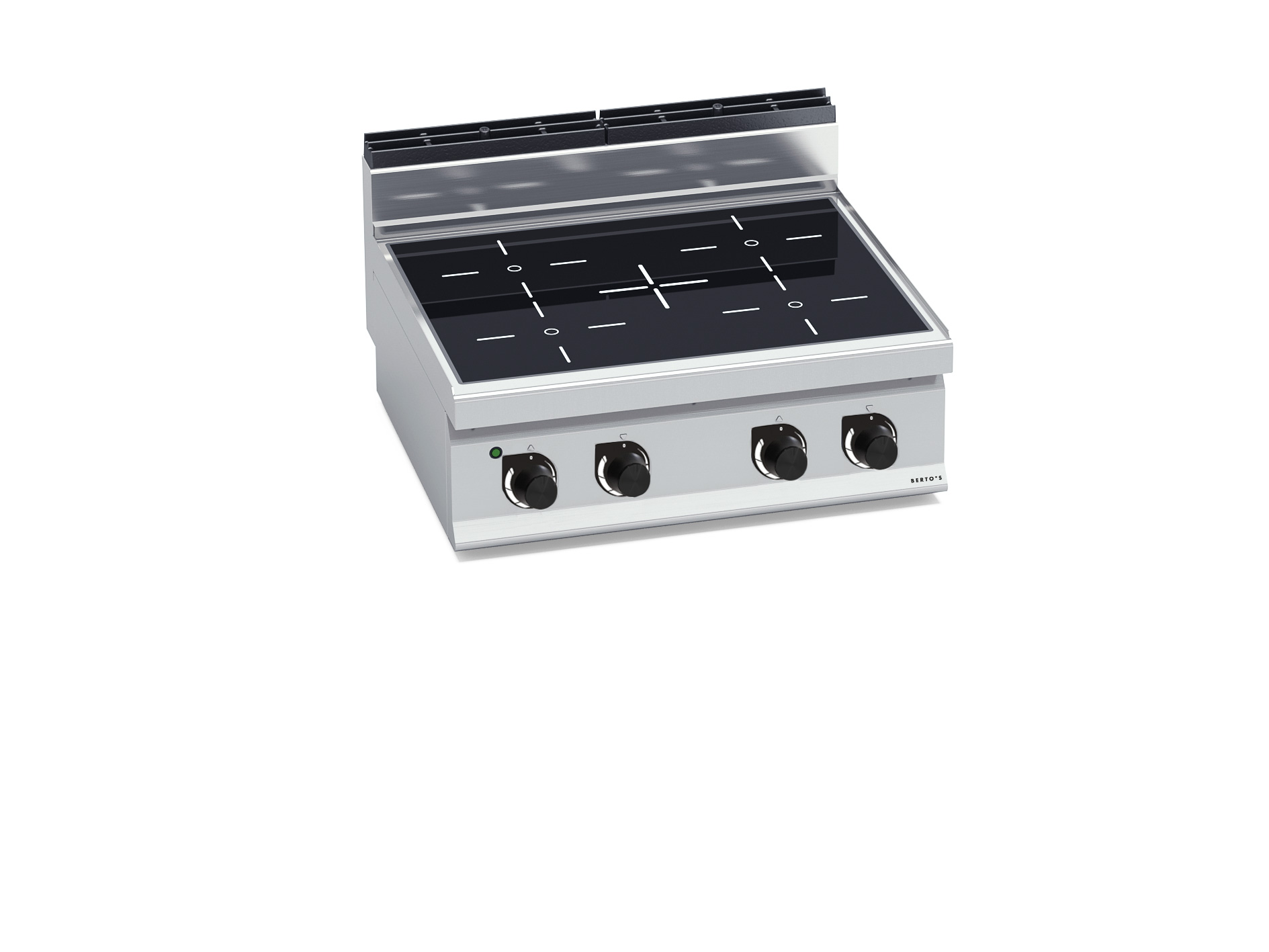

4-ZONE INFRARED TOP

Model E7P4B/VTR
Code 18732000
Worktop and front panels made of AISI 304 stainless steel. Pyroceram top with 6 mm thickness. Electrical resistances able to reach a high temperature (500° C) heating the cooking top by irradiation. The zones are marked by proper serigraphy that allow the proper positioning of the pans. After switching off each zone, a light signals residual heat up to 60° C to safe-guard the operator. High resistance handle of AISI 304 steel with 20/10 thickness. Adjustable feet.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 12.8
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 714
Height 290
Weight 42
Volume 0.17
Package
Package width 880
Package depth 790
Package height 620
Package weight 48
Package volume 0.43

Dimensions

Dimensions
