GAS SOLID TOP - S900

GAS SOLID TOP ON 2/1 GAS OVEN

Model SG9TP+FG
Code 13861000
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing.
Large sized thick cast iron plate with high resistance and heat distribution in differentiated thermal areas: maximum temperature at the centre, decreasing towards the edges. Central cast iron burner with optimized combustion, 13 kW maximum power with thermocouple safety valve and protected pilot flame. Piezoelectric ignition and coating of the combustion chamber from vermiculite, a high performance insulating material.
Gas oven with self-stabilized flame burner positioned under the steel ribbed base and adjustable thermostat from 160 to 280 °C. Oven chamber from AISI 430 with 4-level supports and internal, pressed and ribbed door from stainless steel. Stainless steel internal chimney and burner from AISI 304 stainless steel. High resistance and double-pressed handle from AISI 304 stainless steel.

Technical specifications

Technical specifications

Oven
Oven type G
Oven power in kW 7.8
Details
total gas kW 20.8
Measurements
Width 800
Depth 900
Height 900
Weight 183
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 202
Package volume 1.1

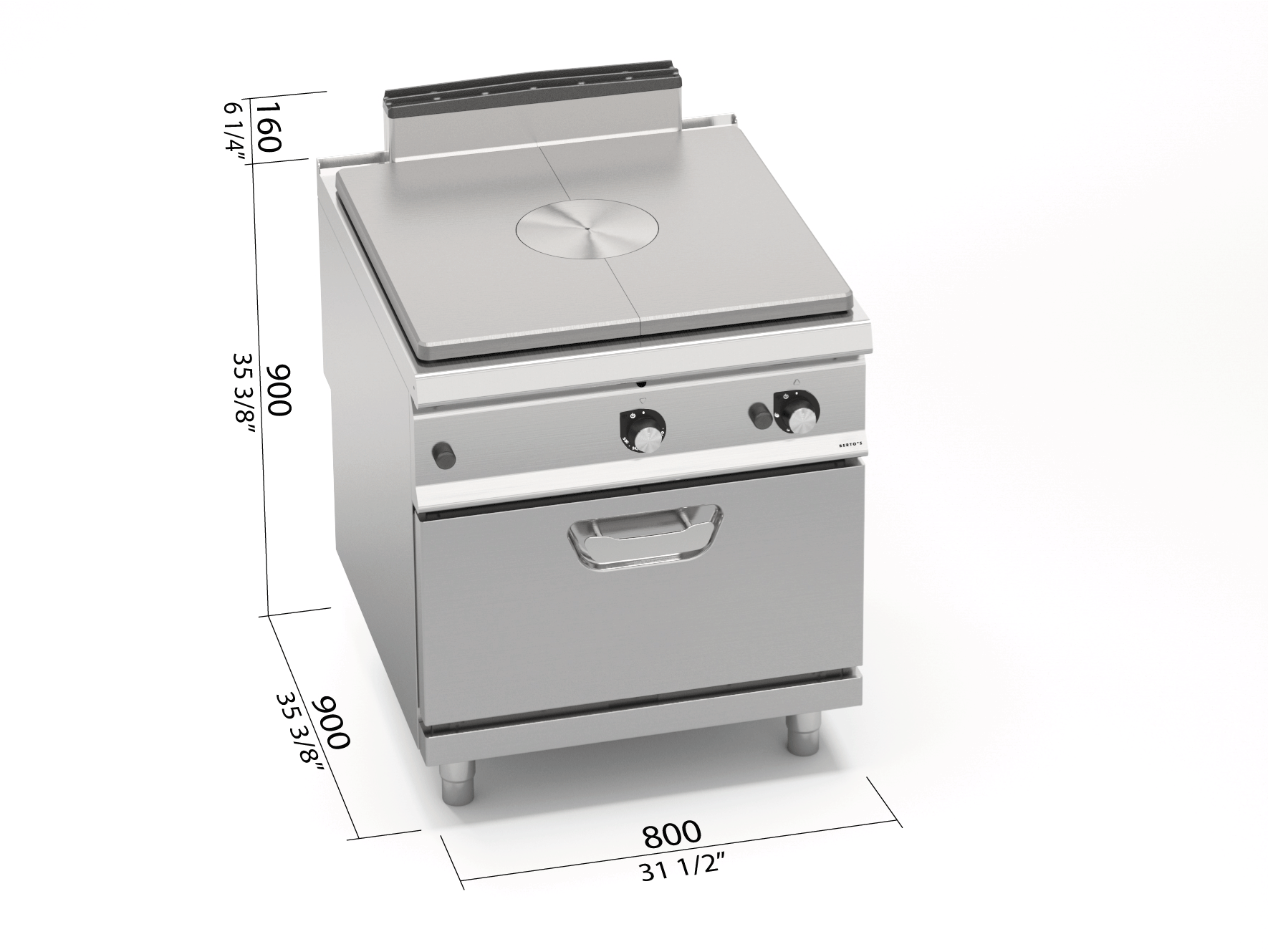

Dimensions

Dimensions
