GAS FRYERS - S900

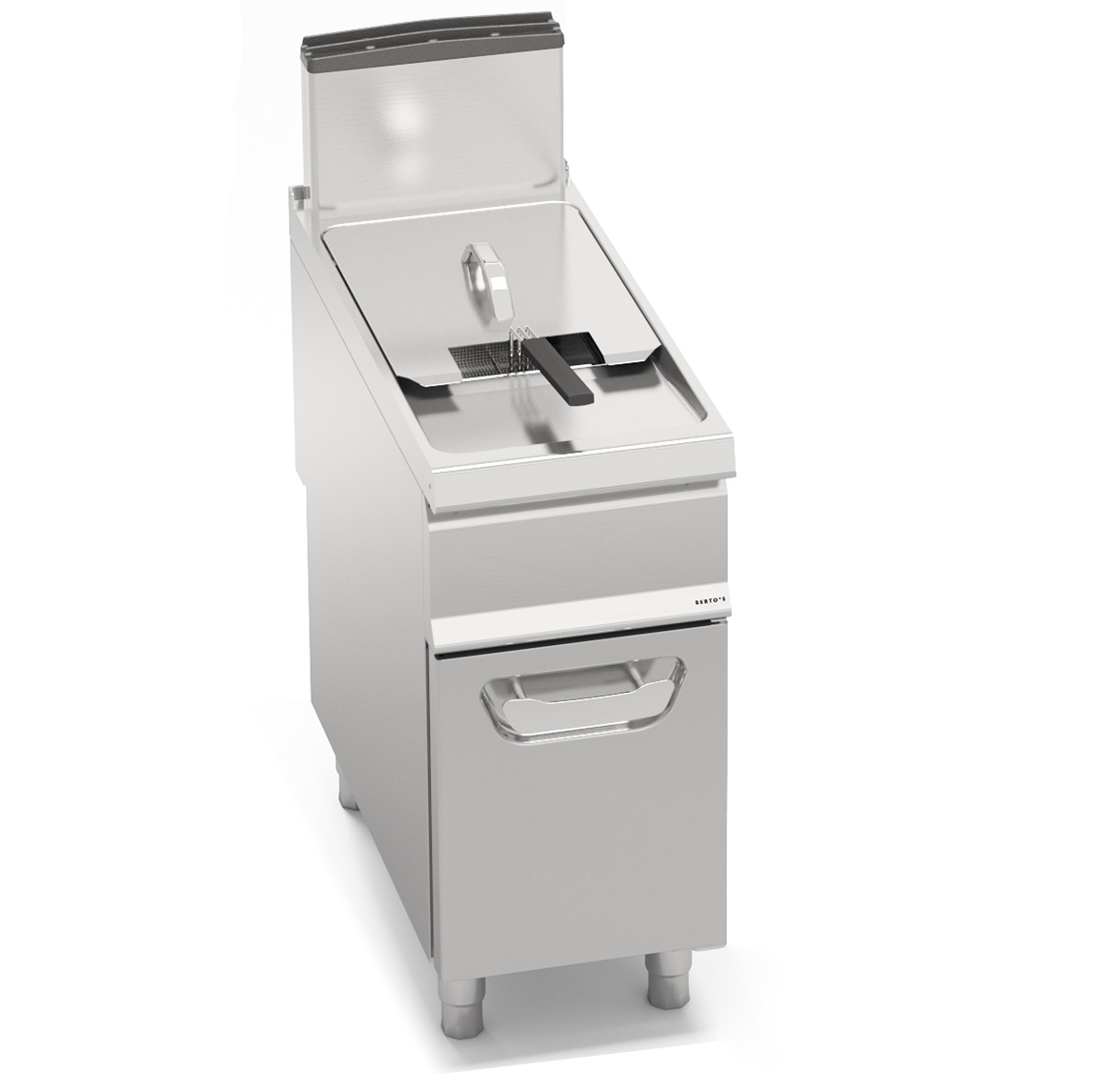

GAS FRYER WITH CABINET - SINGLE TANK 20 L

Model S9GL20M
Code 13460000
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. Stainless steel burners with an oval honey-comb section. Oval section large surface heat exchangers positioned directly in the tank to ensure fast and homogeneous heating. Pilot flame and thermocouple safety valve. AISI 304 stainless steel tank with large rounded edges and wide cold zone below the burners to decant the residual. The top with rounded edges integrates a board to rest baskets; it is slightly inclined to favor oil draining. Temperature control through a thermostatic valve from 110° C to 190° C with a more precise temperature detection, thanks to the sensors positioned in the tank. Safety thermostat with manual restart.
Spherical draining tap positioned in the compartment controlled by an athermic handle and with steel collection tray.

Technical specifications

Technical specifications

Tank
L of capacity 20
Details
total gas kW 17.5
Measurements
Width 400
Depth 900
Height 900
Weight 59
Volume 0.32
Package
Package width 480
Package depth 1090
Package height 1270
Package weight 72
Package volume 0.66

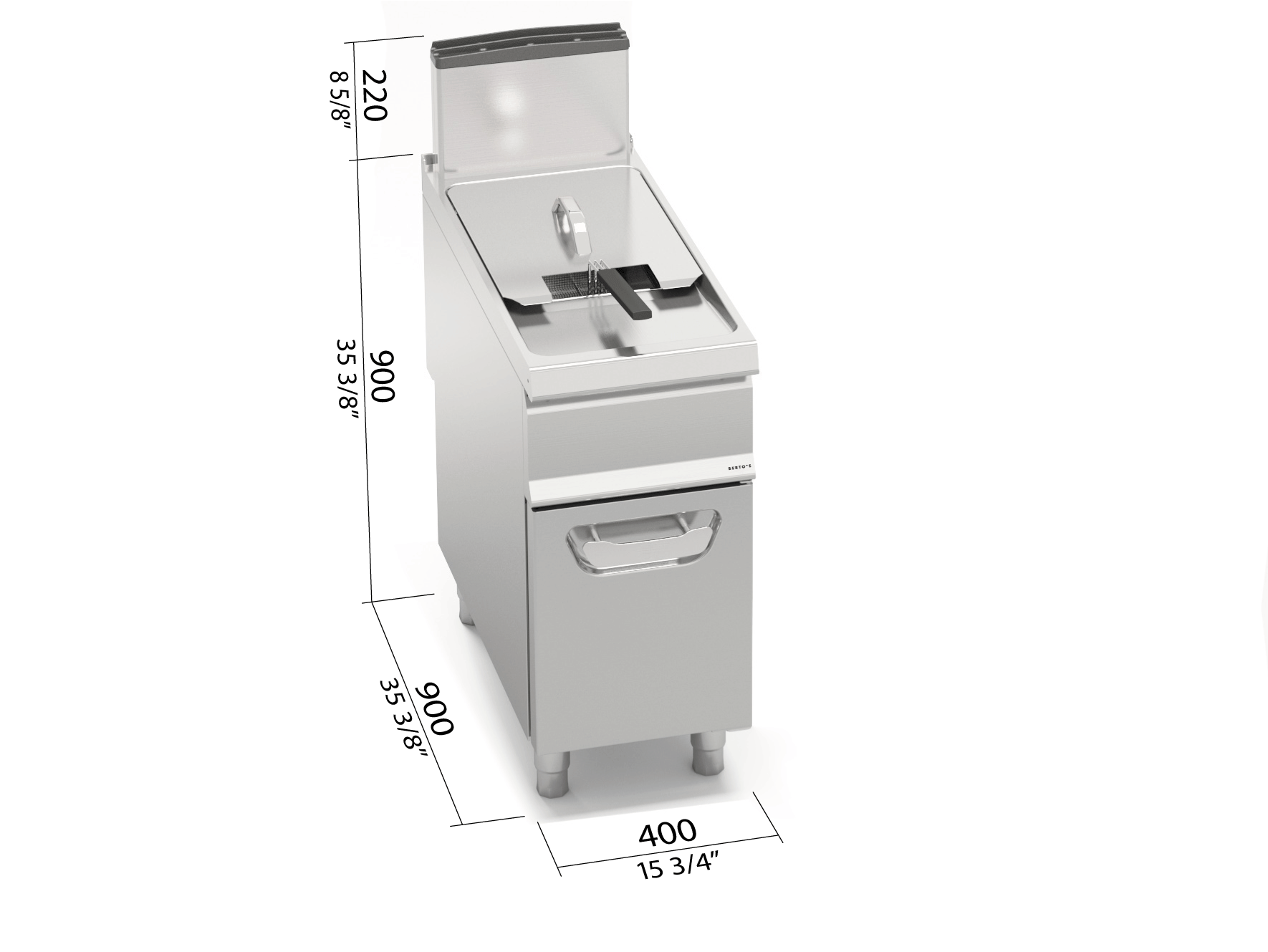

Dimensions

Dimensions
