GAS FRYER 20 LITERS
Download the image
GAS FRYERS - MAXIMA 900

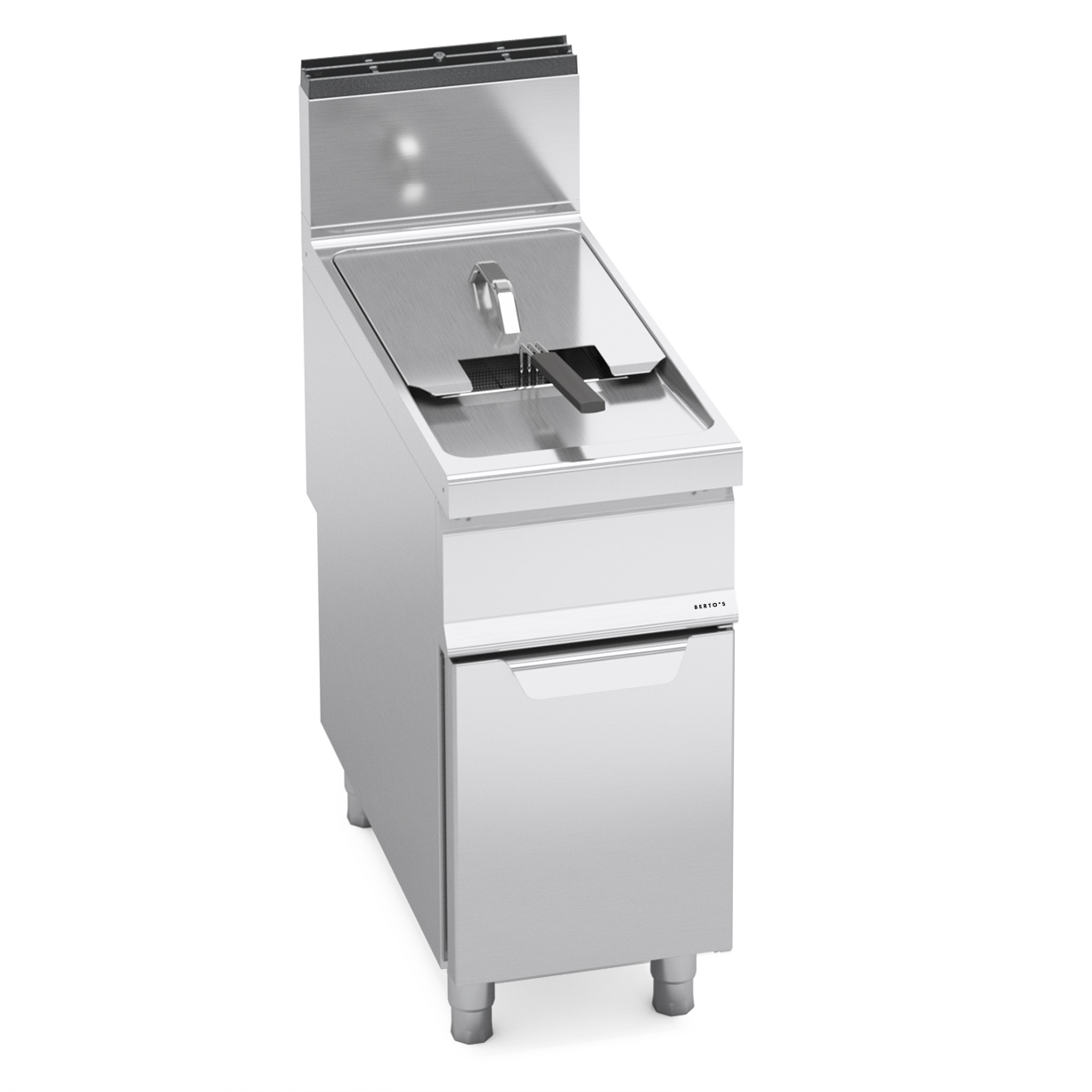

GAS FRYER 20 LITERS

Model 9GL20M
Code 20460000
Worktop and front panels made of AISI 304 stainless steel. Stainless steel burners with an oval honeycomb section. Oval section large surface heat exchangers positioned directly in the tank to ensure fast and homogeneous heating. Pilot flame and thermocouple safety valve. Piezoelectric ignition button with rubber protection. AISI 304 stainless steel tank with large rounded edges and wide cold zone below the burners to decant the residual. The top with rounded edges integrates a board to rest baskets; it is slightly inclined to favor oil draining. Temperature control through a thermostatic valve from 110 to 190 °C with a more precise temperature detection, thanks to the sensors positioned in the tank. Safety thermostat with manual restart. Spherical draining tap positioned in the compartment controlled by an athermic handle.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 20
Details
total gas kW 17.5
Measurements
Width 400
Depth 900
Height 900
Weight 62
Volume 0.32
Package
Package width 480
Package depth 1090
Package height 1270
Package weight 75
Package volume 0.66

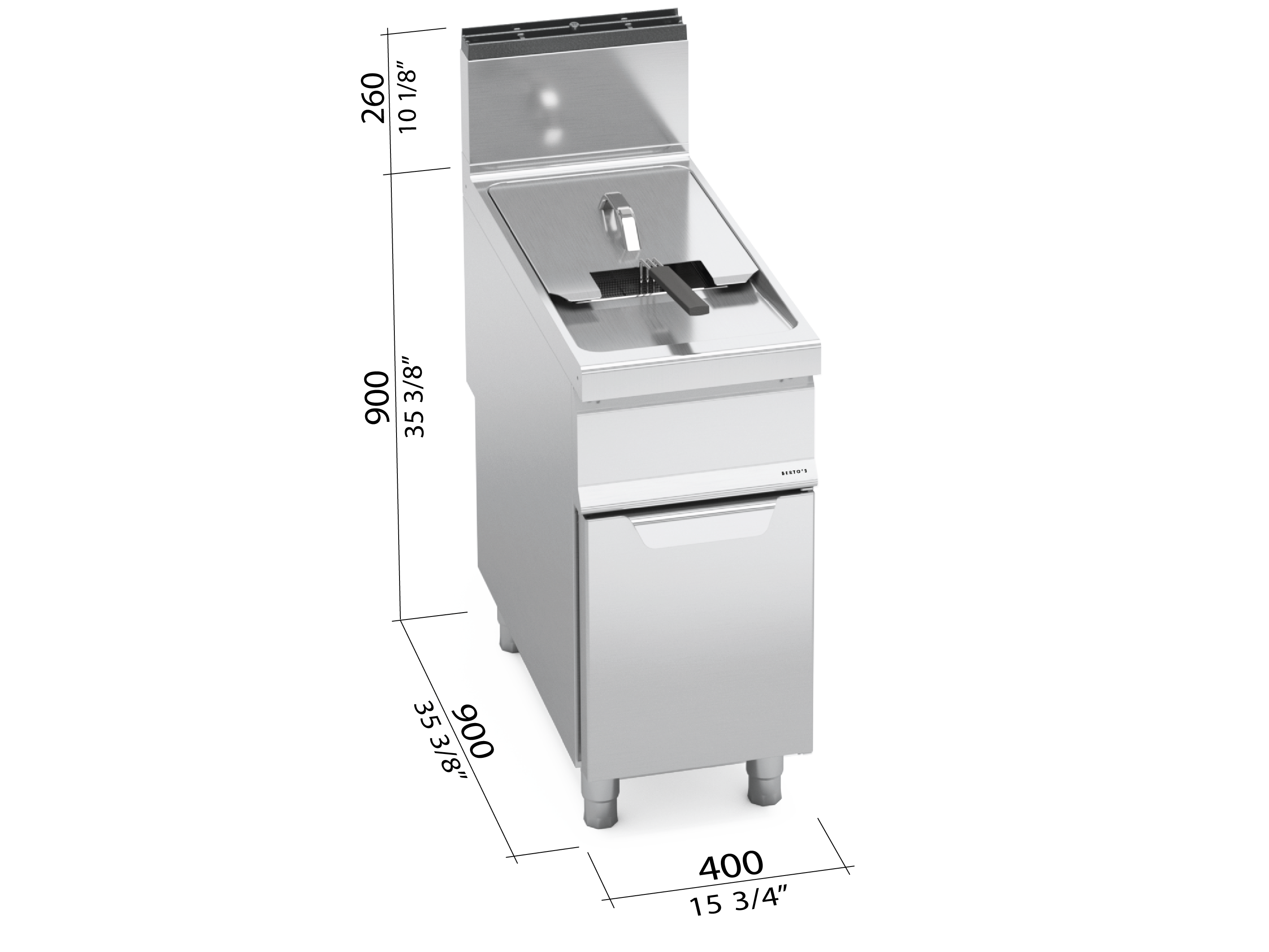

Dimensions

Dimensions
