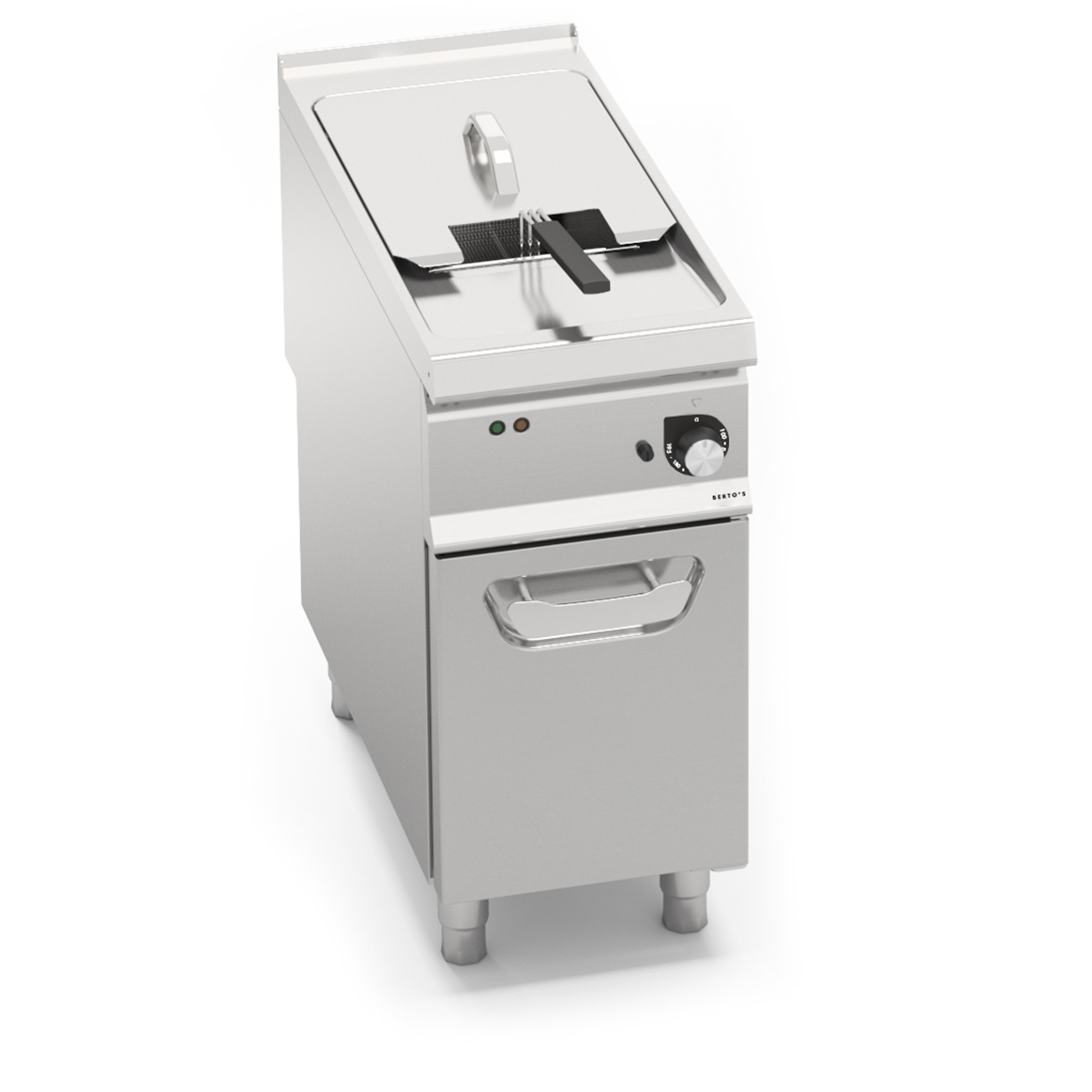

ELECTRIC FRYER WITH CABINET - SINGLE TANK 22 L
Download the image
ELECTRIC FRYERS - S900

ELECTRIC FRYER WITH CABINET - SINGLE TANK 22 L

Model SE9F22-4MS
Code 13515700
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. Incoloy stainless steel resistances positioned directly in the tank that can be tilted vertically to make cleaning operations easier. Safety device to cut power supply with resistances in vertical position. High precision electric thermostat temperature control. AISI 304 stainless steel tank with large rounded edges and wide cold zone below the resistances to decant the residual. The top with rounded edges integrates a board to rest baskets; it is slightly inclined to favor oil draining.
Spherical draining tap positioned in the compartment controlled by an athermic handle and with steel collection tray.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 22
Details
total electric kW 22
Electrical voltage 380-415 V3N
Measurements
Width 400
Depth 900
Height 900
Weight 64
Volume 0.32
Package
Package width 480
Package depth 1090
Package height 1170
Package weight 76
Package volume 0.61

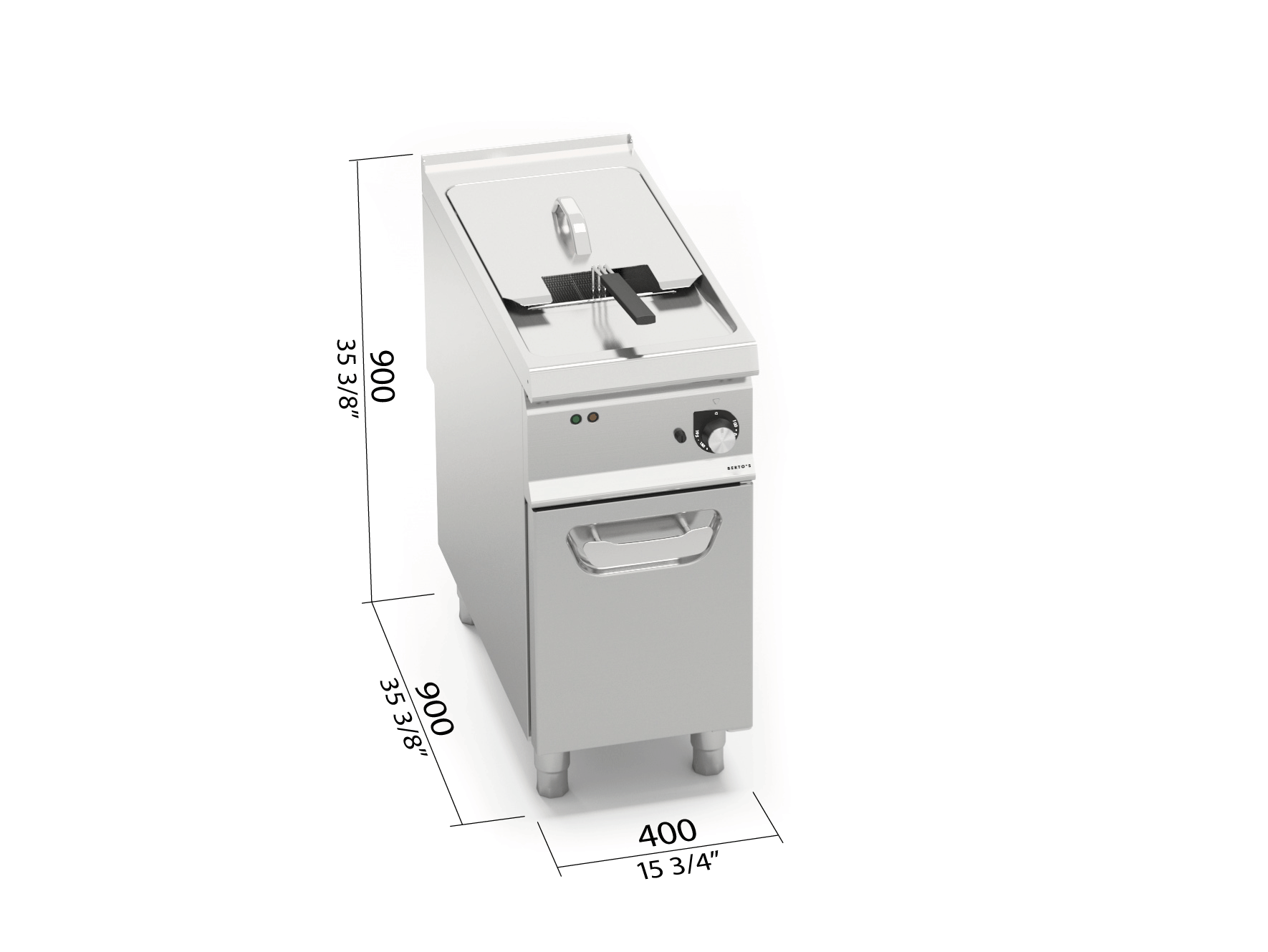

Dimensions

Dimensions
