ELECTRIC FRYERS - PLUS 600

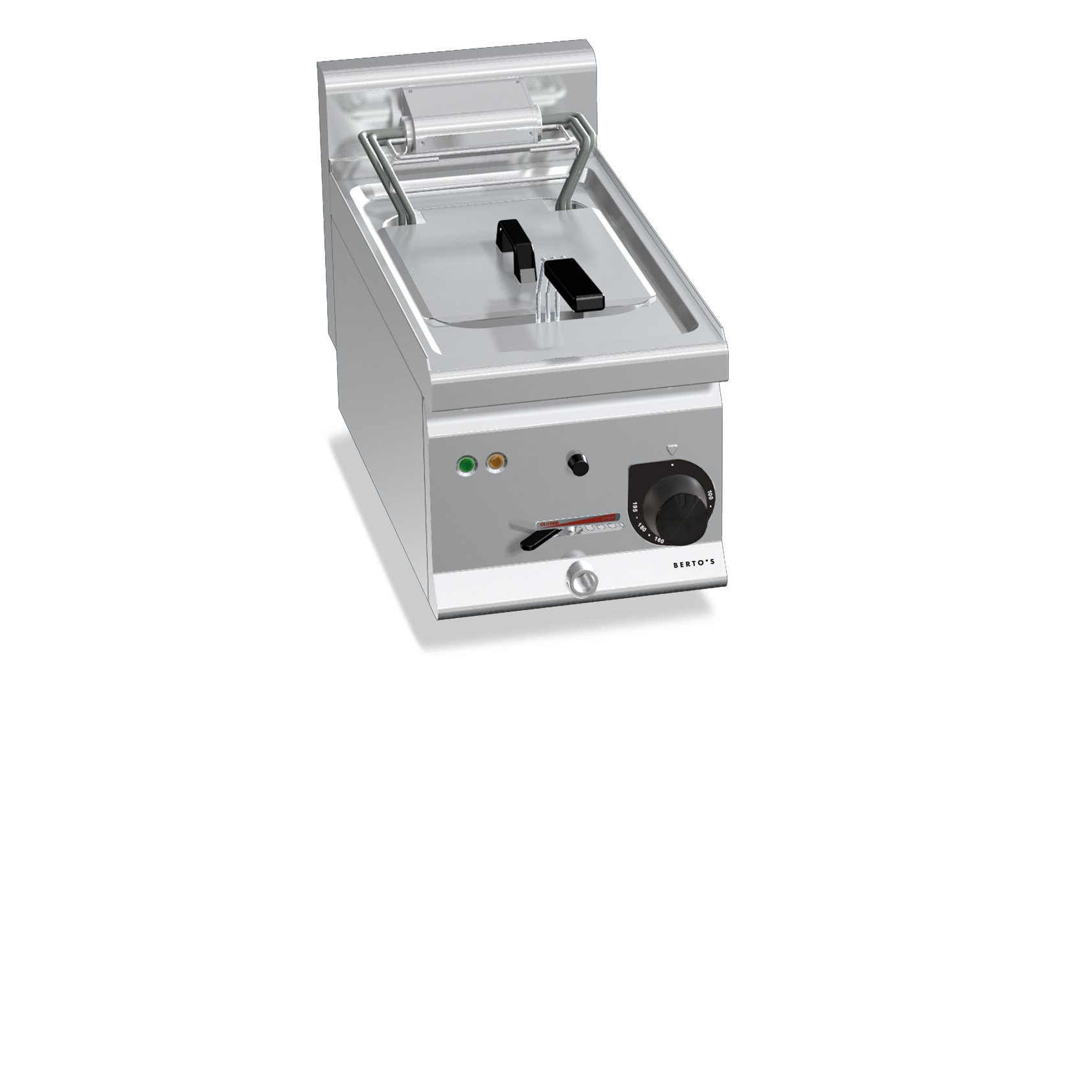

ELECTRIC FRYER (COUNTER TOP) - SINGLE TANK 10 L

Model E6F10-3B
Code 21501000
Basin bottom and front panels made of AISI 304 STAINLESS STEEL. Pressed and rounded basin equipped with long-lasting special rotating heating elements made in Incoloy stainless steel; they can reach the operational temperature in a very short time, increasing oil savings up to 60%. The frying system maintains the organoleptic characteristics of the oil, which allows for a healthier production and, furthermore, limits the required oil changes giving further savings. System to rotate the heating elements to make clearing operation easier. Control of set temperature up to 190°C by thermostat and safety thermostat with manual restart. Average frying time is 5 minutes. Pre-heating time is 6 minutes (from 20 to 190°C). Maximum output 25 kg/h (E6F10-3B, E6F10-3M), 30 kg/h (E6F10-3BS, E6F10-3MS). Adjustable feet (model with cabinet).
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 10
Details
total electric kW 6
Electrical voltage 380-415 V3
Measurements
Width 300
Depth 600
Height 290
Weight 20
Volume 0.05
Package
Package width 365
Package depth 765
Package height 600
Package weight 26
Package volume 0.17

Dimensions

Dimensions
