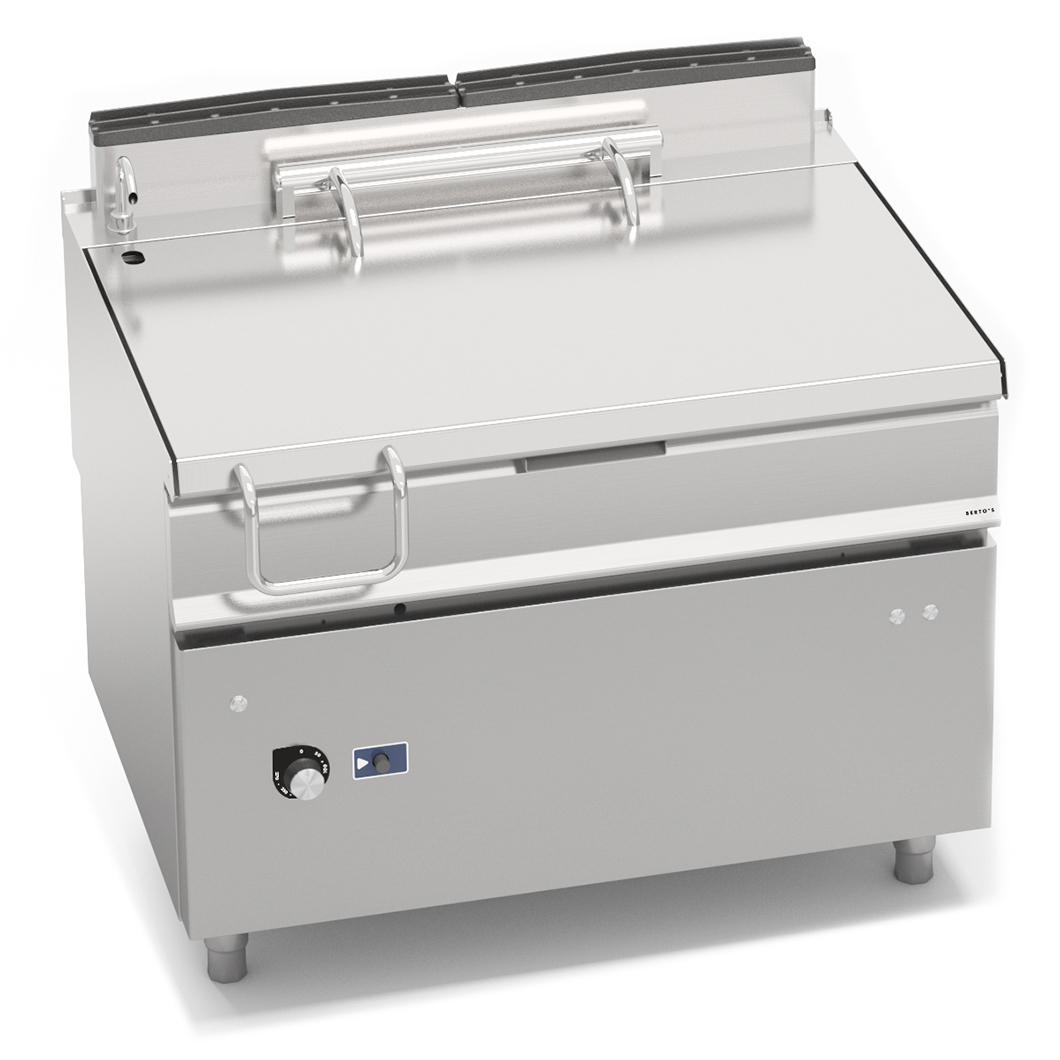

BRATT PANS - S900

120 L GAS TILTING BRATT PANS MOTORIZED TILTING

Model SG9BR12/I+RM+CDP
Code 13824704
Internal and external frame completely made of stainless steel, external sides with Scotch Brite finishing. Cover with a condensation collection system fixed on a self-balanced hinge from AISI 304 stainless steel with an adjustable clutch and a very thick handle from AISI 304 stainless steel. Cooking tank with top and AISI 304 stainless steel walls with 20/10 thickness, non-stick ceramic micro-sphere finishing and completely rounded angles. Radiating steel tank bottom with 10 mm thickness; externally welded. Distributing tap with large capacity neck placed on the top. Handwheel to lift the tank with a folding handle. Even heating at the bottom with stainless steel multi-flame burners, with thermocouple safety valve and protected pilot flame. Electric ignition. Control with a large precision thermostatic valve with temperature regulation from 100° C to 300°C.

Technical specifications

Technical specifications

Tank
L of capacity 120
Details
total gas kW 30
total electric kW 0.4
Electrical voltage 220-240 V
Measurements
Width 1200
Depth 900
Height 900
Weight 238
Volume 0.97
Package
Package width 1280
Package depth 1080
Package height 1160
Package weight 264
Package volume 1.6
