60 L ELECTRIC TILTING BRATT PANS
Download the image
BRATT PANS - S700

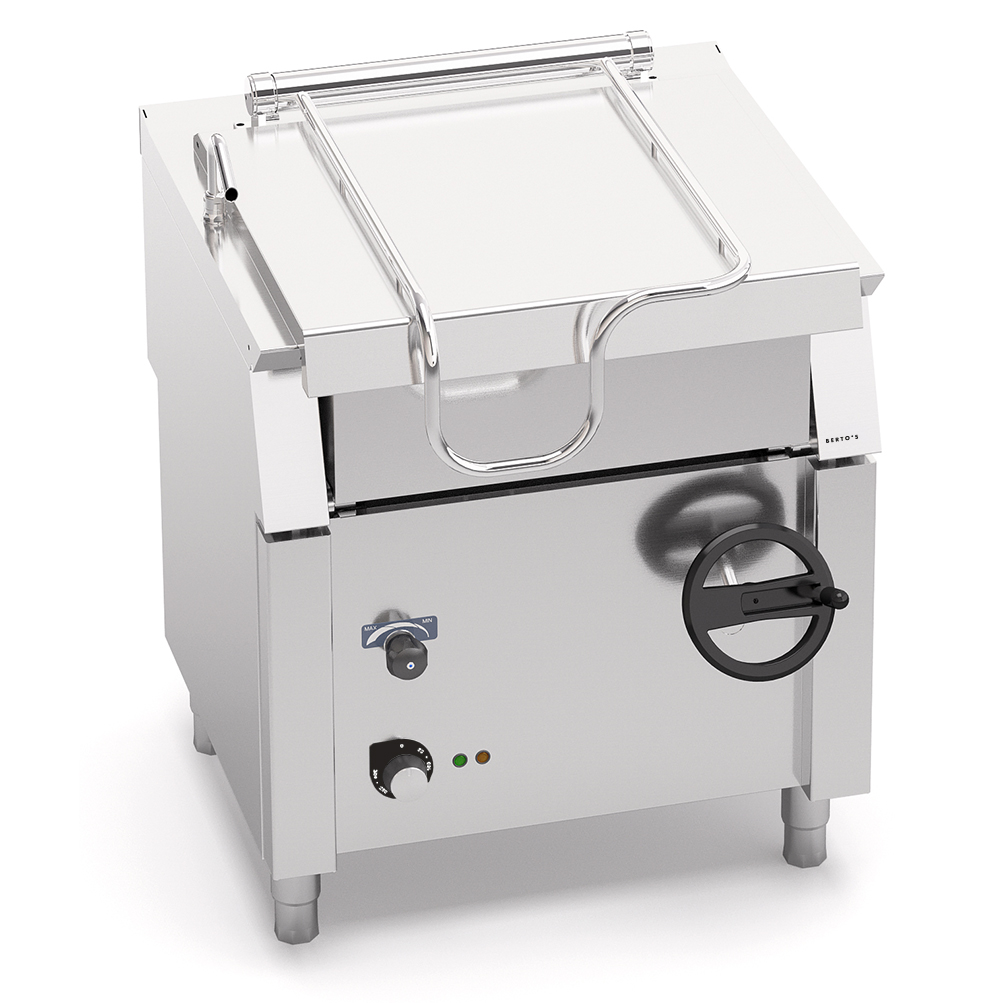

60 L ELECTRIC TILTING BRATT PANS

Model SE7BR8/I
Code 07822800
Internal and external construction entirely in stainless steel, external surfaces with Scotch Brite finish. Cooking tank with bottom and walls from AISI 304 stainless steel, manual tilt to 80°, with non-stick ceramic micro-sphere finishing and rounded edges. Steel tank bottom of 10 mm thickness, externally welded to provide better thermal conductivity. Uniform heat as a result of the heating elements being in direct contact with the base. Power supply controlled by switch and thermostat (100 - 300 °C). Safety thermostat with manual restart. Tension and operation lights. Adjustable feet.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 60
Details
total electric kW 9
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 730
Height 900
Weight 120
Volume 0.60
Package
Package width 880
Package depth 800
Package height 1210
Package weight 135
Package volume 0.84

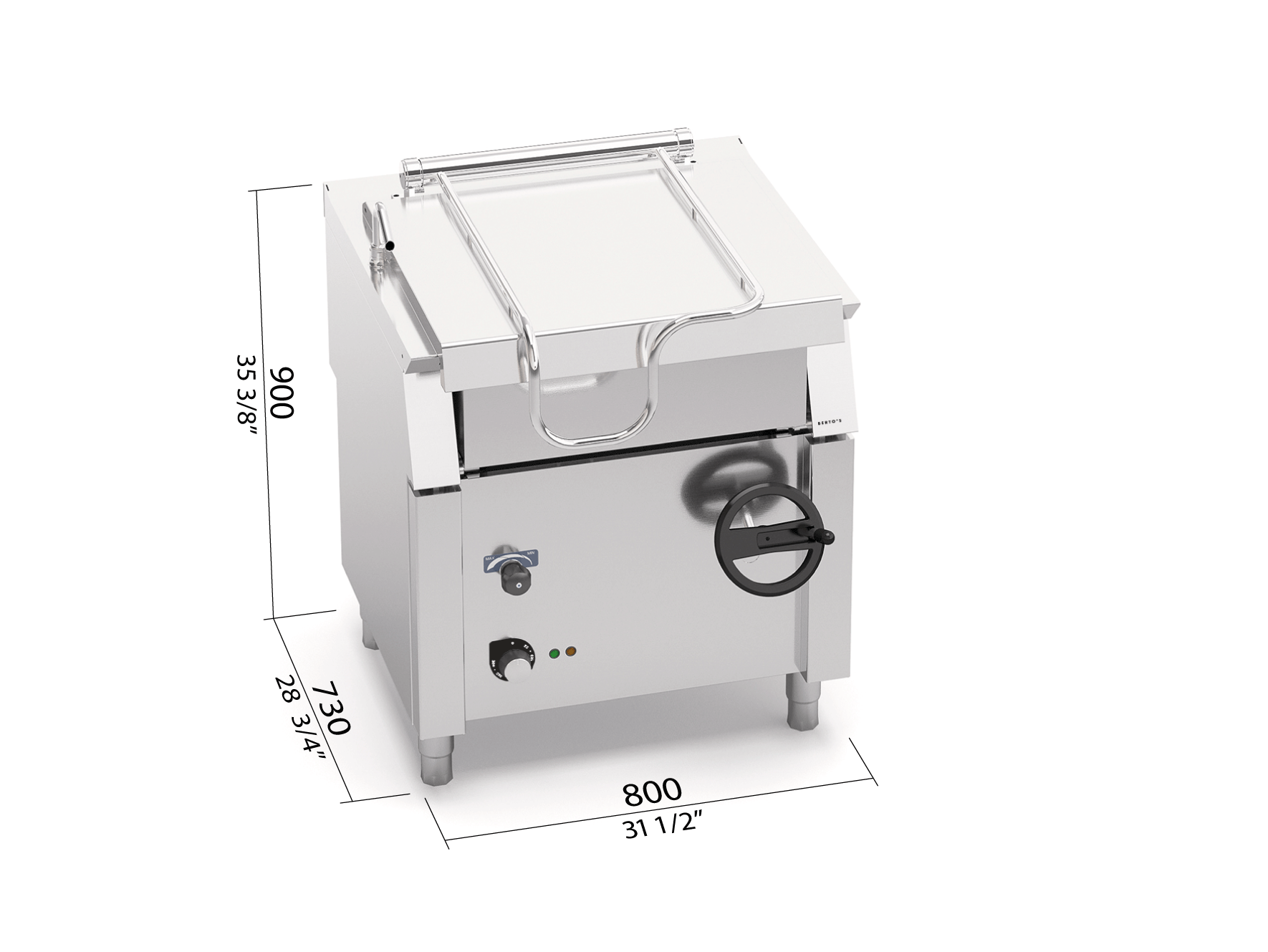

Dimensions

Dimensions
