50 L ELECTRIC BOILING PAN - INDIRECT HEATING
Download the image
BOILING PANS - S700

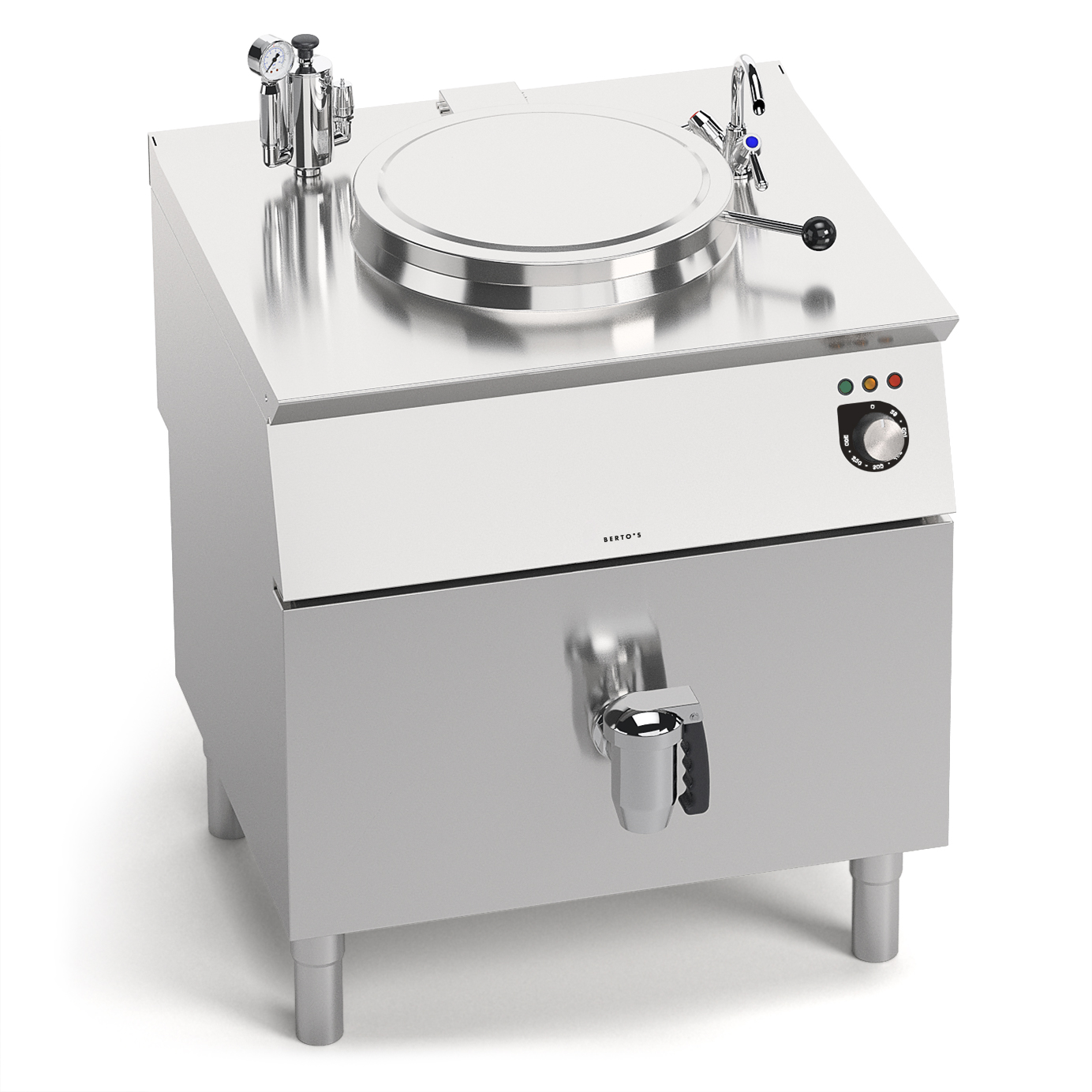

50 L ELECTRIC BOILING PAN - INDIRECT HEATING

Model SE7PI
Code 07843000
Worktop and front panels made of AISI 304 stainless steel. AISI 304 stainless steel cooking container with 15/10 thickness, AISI 316 stainless steel bottom with 20/10 thickness. Jacket with bottom and walls of AISI 304 stainless steel, bottom with 20/10 thickness, walls with 15/10 thickness. Indirect type heating with low pressure steam (0.5 bar) generated inside the jacket through resistances equipped with a safety thermostat. Hot and cold water tap on the worktop with an articulated spout for filling and washing the container. 1 1/2” draining tap of chromed brass with athermic handle. Mechanical gauge with a jacket pressure indicator. Power supply regulated by a 3-position switch. Separate control for temperature regulation. Power indicator and temperature light. Adjustable feet.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 50
Details
total electric kW 9
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 730
Height 900
Weight 100
Volume 0.60
Package
Package width 880
Package depth 790
Package height 1210
Package weight 115
Package volume 0.84

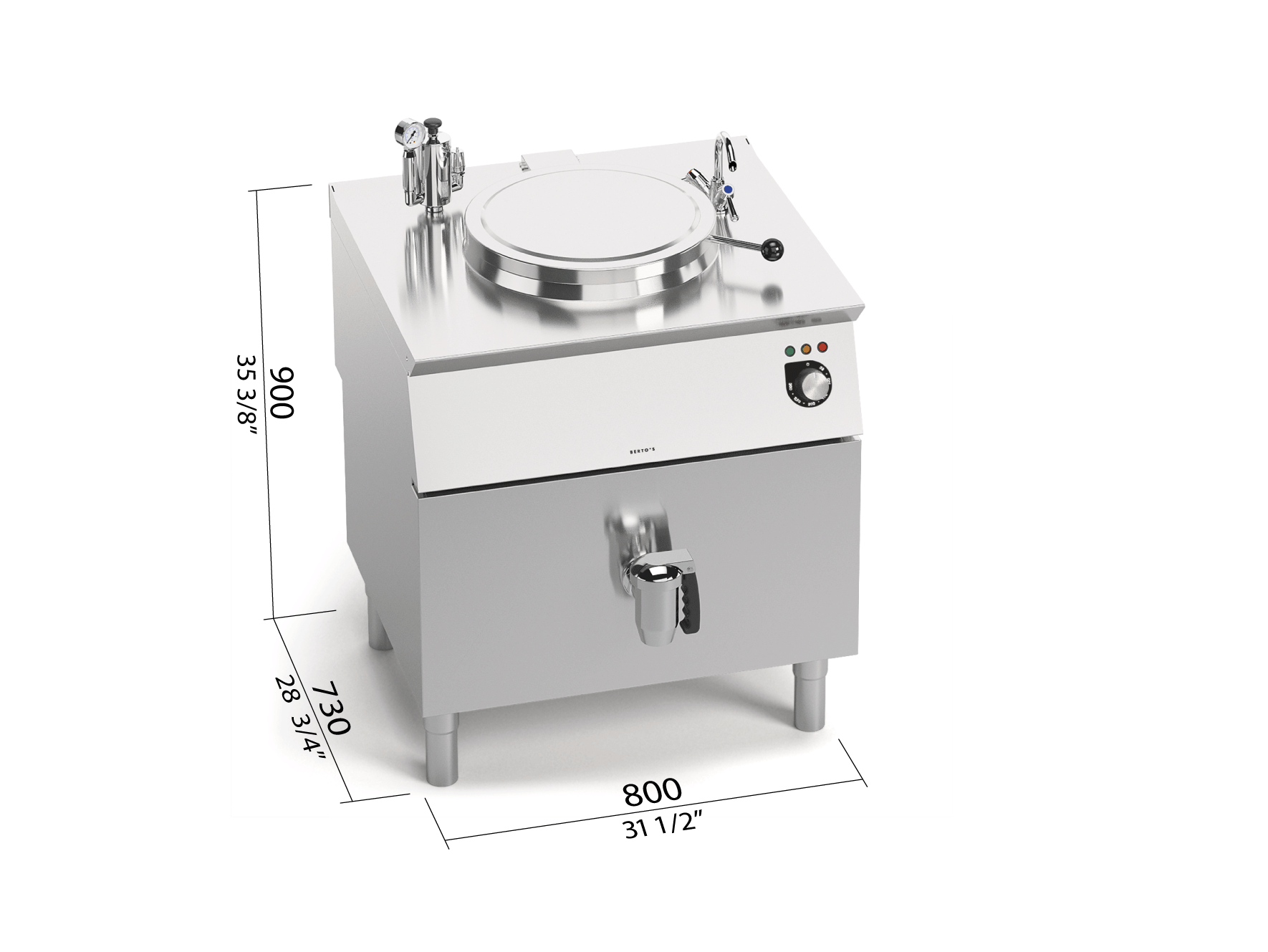

Dimensions

Dimensions
