GAS BOILING PAN - INDIRECT HEATING
Download the image
BOILING PANS - MACROS 700

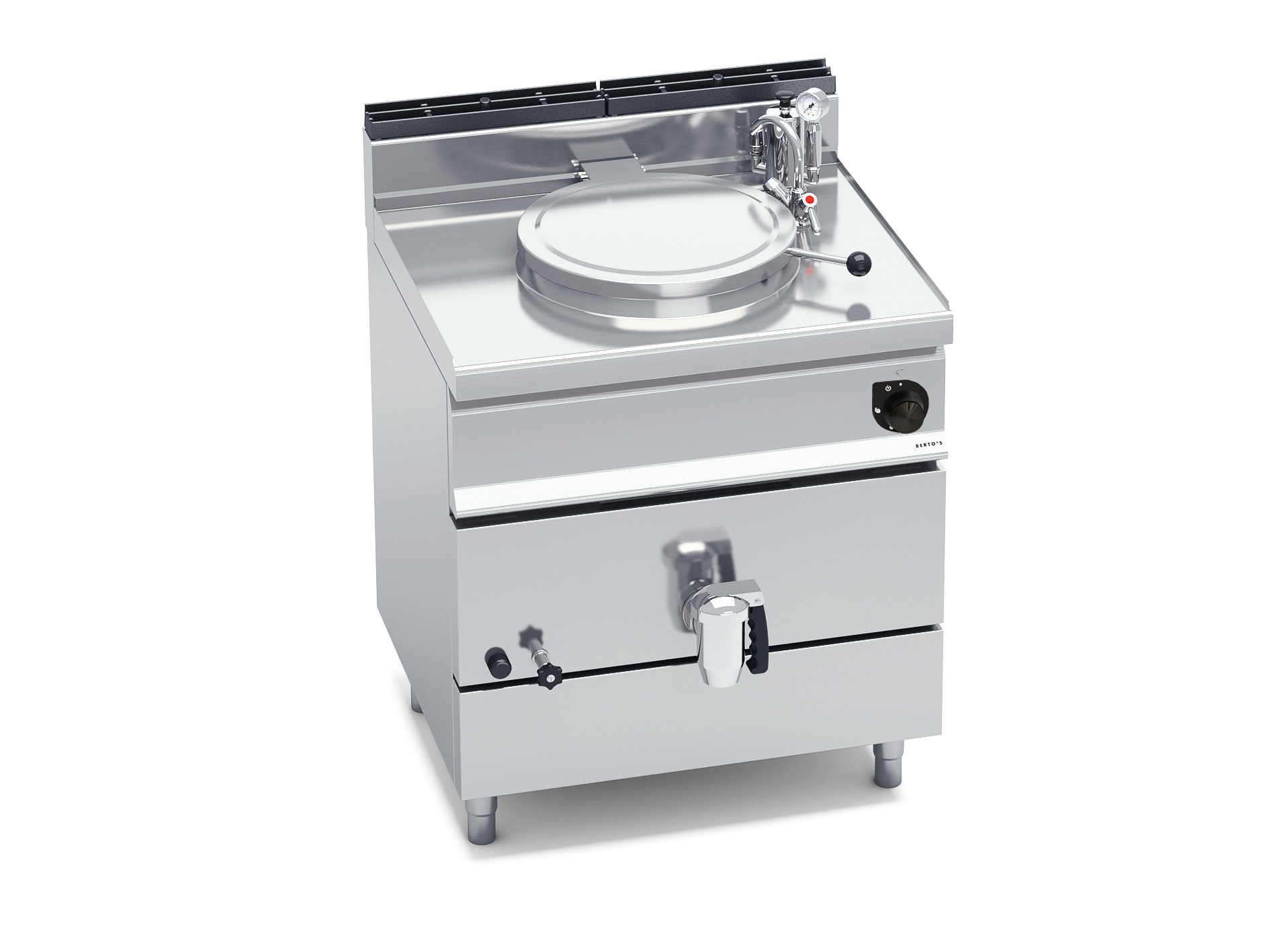

GAS BOILING PAN - INDIRECT HEATING

Model G7PI
Code 18841000
Worktop and front panels made of AISI 304 stainless steel. AISI 304 stainless steel cooking container
with 15/10 thickness, AISI 316 stainless steel bottom with 20/10 thickness. Jacket with bottom and
walls of AISI 304 stainless steel, bottom with 20/10 thickness, walls with 15/10 thickness. Indirect
type heating with low pressure steam (0.5 bar) generated inside the jacket by tubular burners made
of stainless steel with optimized combustion, safety thermocouple valve and protected pilot flame.
Piezoelectric ignition with silicone protection. Hot and cold water taps on the worktop with an
articulated spout for filling and washing the container and jacket. 1 1/2” draining tap of chromed brass
with athermic handle. Mechanical gauge with a jacket pressure indicator. Temperature regulation by
means of a maximum and minimum tap. Adjustable feet.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 50
Details
total gas kW 15.5
Measurements
Width 800
Depth 714
Height 900
Weight 118
Volume 0.51
Package
Package width 970
Package depth 790
Package height 1270
Package weight 138
Package volume 0.97

Dimensions

Dimensions
